Fix The GPS Location Services Issue on iPhone 3GS by Downgrading the 06.15.00 Baseband to a Better Unlockable Baseband

July 7, 2012 28 Comments

Hurrah! – a way to downgrade your iPhone 3Gs or 3G baseband from the iPads 06.15.00 to 05.13.04 which is also an unlockable baseband. What this means is that you can at last fix your intermittent GPS and use location services on your iPhone and also still have the benefit of an unlocked baseband that ultrasn0w supports which you can use any SIM card and are not locked to a network carrier.

There is now an updated quicker way to do this with a newer redsn0w version (0.9.14b2), it also supports more 3GS and 3G models that had certain ‘NOR’ chips that failed to downgrade in the previous redsn0w version – I’ll leave both ways posted in case people have more luck with the older way – the older method is surrounded by a blue gradient.

Updated Method

get Redsn0w

Mac Win

– Connect your iPhone normally

– Launch redsn0w

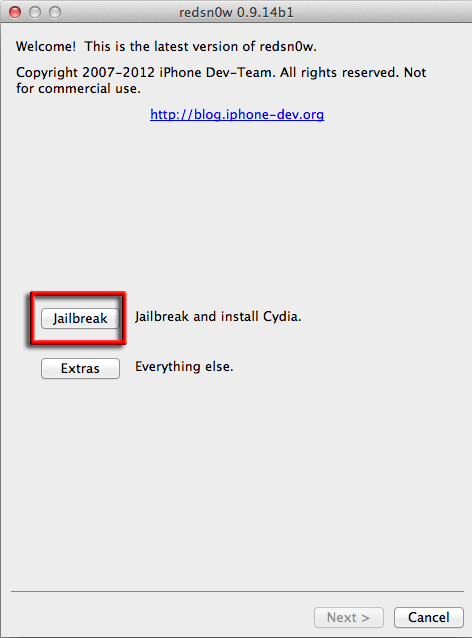

– Click Jailbreak

baseband-launch-redsnow-jailbreak



baseband-launch-redsnow-jailbreak-ramdisk

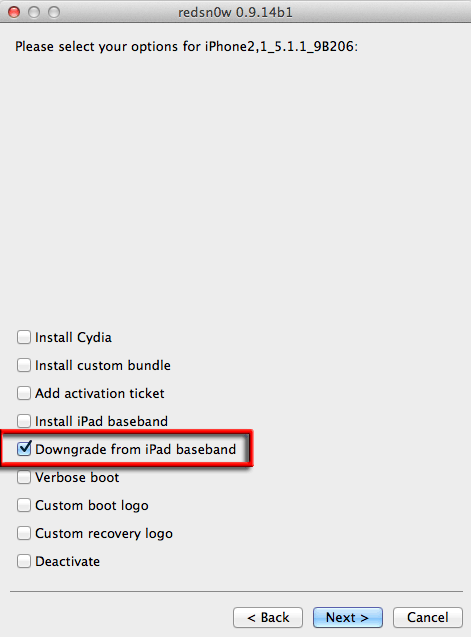

– Click Downgrade from iPad baseband

baseband-launch-redsnow-jailbreak-ramdisk-baseband-downgrade

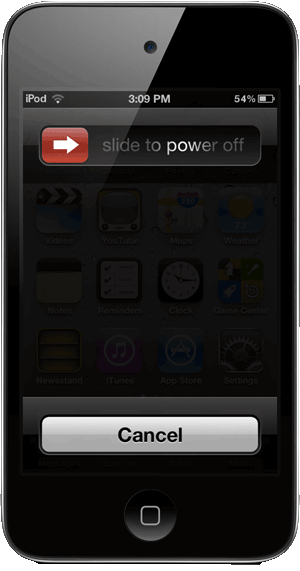

– Do a slide to power off on your iPhone

slide-to-power-off-iphone

slide-to-power-off-iphone

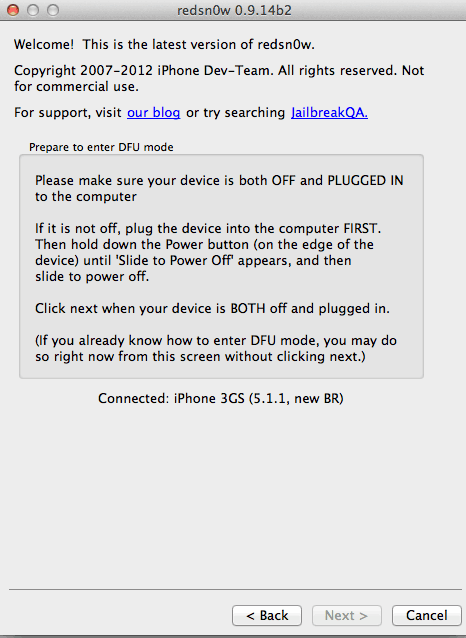

– back in redsn0w click next and you get the pre-go into DFU mode screen – click next and follow the steps to get into Pwned DFU mode

redsn0w-dfu-pwned-mode-screen

redsn0w-dfu-pwned-mode-screen



Once you see the screen The rest of the process takes place on your device you have successfully entered DFU mode, it will install the new baseband on your device, you will see scrolling code and pineapples on the iPhone, do not interrupt it, can take up to 10 mins – eventually a reboot – and then you are on Baseband 05.13.04

baseband-launch-redsnow-jailbreak-on-your-device

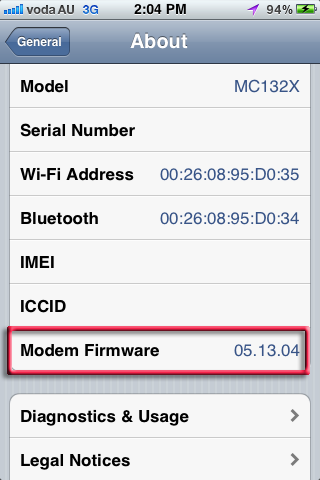

 – Check your baseband downgrade was successful on the iPhone – Settings > General > About > Modem Firmware

modem-firmware-baseband 05.13.04



Previous Method

Before you start the process find out which boot rom you are on either by noting down the 4th and 5th numbers of your serial number – or finding out here.



get Redsn0w

Mac Win



get your IPSW Firmware

the iOS that your iPhone is currently running

  • iOS 5.1.1
  • iOS 5.1.0
  • iOS 5.0.1
  • iOS 5.0.0
  • iOS 4.3.5
  • iOS 4.3.4
  • iOS 4.3.3
  • iOS 4.3.2
  • iOS 4.3.1
  • iOS 4.3.0
  • iOS 4.2.1
  • iOS 4.1.0
  • iOS 4.0.2
  • iOS 4.0.1
  • iOS 4.0.0

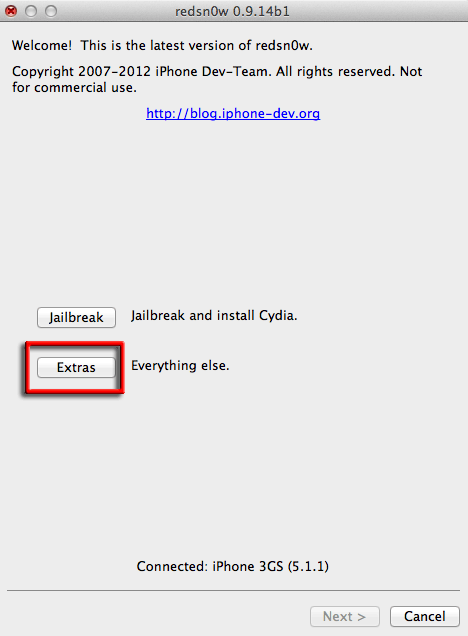

launch Redsnow

> Extras

baseband-launch-redsnow-extras

baseband-launch-redsnow-extras

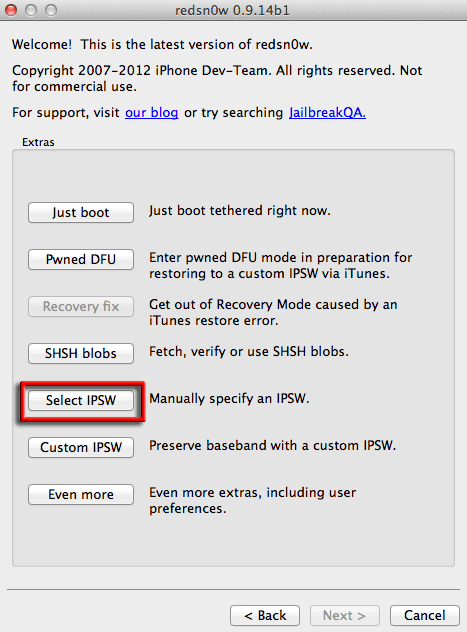

select IPSW – and select the downloaded iOS from above

baseband-redsnow-select-ipsw

baseband-redsnow-select-ipsw

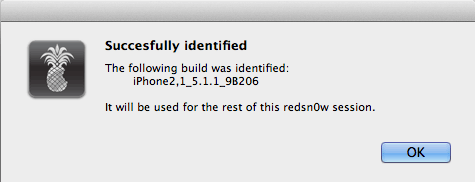

the IPSW is verified

baseband-redsnow-select-ipsw-successful

baseband-redsnow-select-ipsw-successful

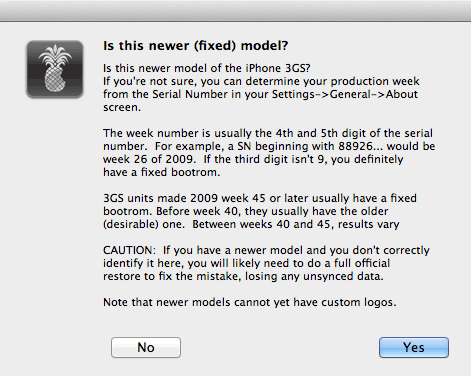

answer the boot rom question

baseband-redsnow-select-ipsw-bootrom-question

baseband-redsnow-select-ipsw-bootrom-question





connect the iPhone 3GS make sure it is turned off –hold the power button and ‘slide to power off’

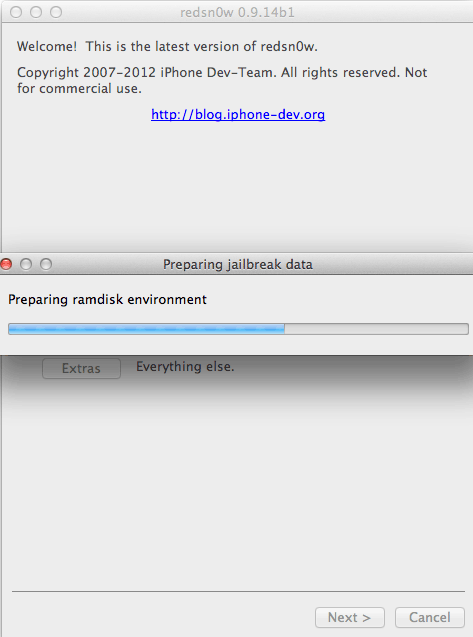

back to redsnow – ‘Jailbreak‘ – this will prepare the ramdisk to do the process

baseband-launch-redsnow-jailbreak

baseband-launch-redsnow-jailbreak







baseband-launch-redsnow-jailbreak-ramdisk

baseband-launch-redsnow-jailbreak-ramdisk



from the options select ‘Downgrade from iPad baseband’ – uncheck install Cydia if already installed

baseband-launch-redsnow-jailbreak-ramdisk-baseband-downgrade

baseband-launch-redsnow-jailbreak-ramdisk-baseband-downgrade

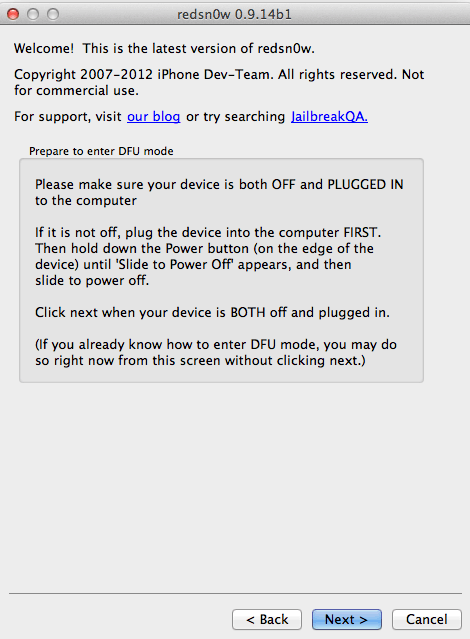

enter DFU mode – follow the steps

baseband-launch-redsnow-jailbreak-dfu-mode

baseband-launch-redsnow-jailbreak-dfu-mode

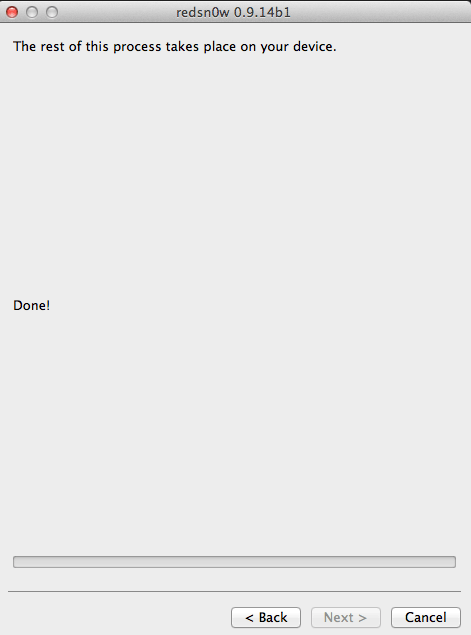

Once you see the screen The rest of the process takes place on your device you have successfully entered DFU mode, it will install the new baseband on your device, you will see scrolling code and pineapples on the iPhone, do not interrupt it, can take up to 10 mins – eventually a reboot – and then you are on Baseband 05.13.04

baseband-launch-redsnow-jailbreak-on-your-device

baseband-launch-redsnow-jailbreak-on-your-device



Check your baseband downgrade was successful on the iPhone – Settings > General > About > Modem Firmware

Welcome back GPS!

Thanks to MuscleNerd.



troubleshooting

If you get the error -‘Exploit Failed’ you will need to check that your host file is not blocking Apple –

#74.208.10.249 gs.apple.com

If you get ‘No Service’ or ultrasn0w issues – reinstall both ultrasnow and mobilesubstrate via Cydia on the iPhone

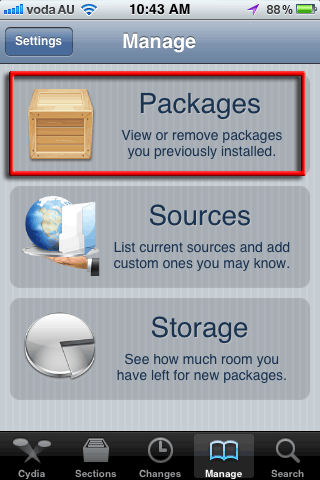

– Launch Cydia > tap Manage > Packages

cydia-manage-packages

cydia-manage-packages

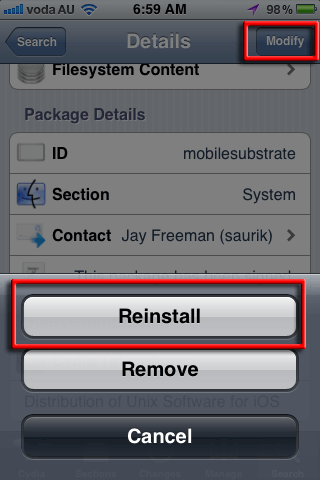

– search for Mobile Substrate and Re-Install

cydia-reinstall-ultrasn0w-mobilesubstrate

cydia-reinstall-ultrasn0w-mobilesubstrate

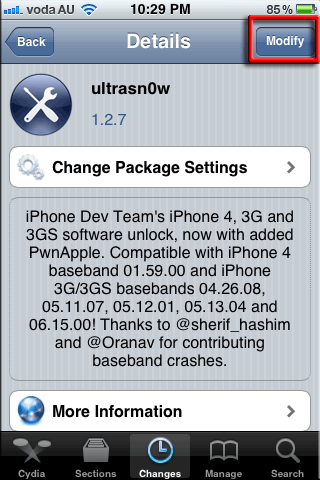

– search for ultrasn0w and Re-Install

cydia-reinstall-ultrasn0w

cydia-reinstall-ultrasn0w
